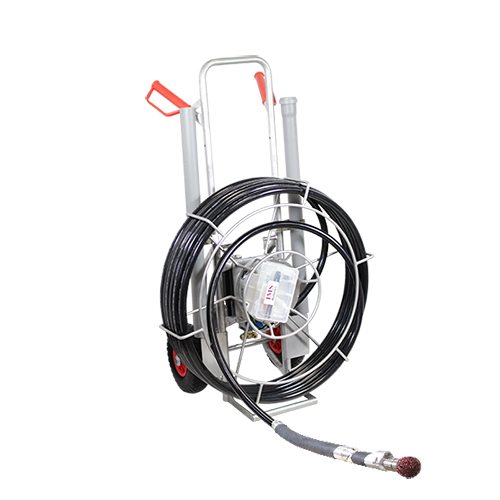

NANO easy (DN 70 - 100)

NANO easy (DN 70 - 100)
CategoriesIndoor Installation
AlbumView larger image
BrandIPS
Update Time2018-12-13
Detail Information

NANO



easy

  • · range of application in pipes from DN 70 up to DN 100/3” - 4” (inside diameter)
  • · excellent flexibility in bends up to 90° in DN 70/3”
  • · pneumatic clamping unit permits usage also in vertical pipes
  • · only smallest access openings required
  • · convenient supply hose package of 15 m/49 ft or 25 m/82 ft
  • · high cutting force through powerful air motor
  • · flexible operation due to on the supply hose · movable steering wheel and removable monitor
  • · permanent monitoring of cutting operation by · integrated color camera
  • · high mobility convenience through compact · stainless steel chassis
  • · several cutting tools can be installed
  • · accessories with construction site tools

NANO



easy

  • · useable from DN 70 up to DN 100/3” up to 4”    (inside diameter)
  • · flexibility in bends 90° from DN 70/3” (2 x 45° -    plastic pipe bend - without obstacles)
  • · 15 m/49 ft or 25 m/49 ft supply hose package
  • · air-powered cutter motor
  • · integrated color camera with LED lighting
  • · camera cleaning with permanent air
  • · splash-proof according to IP 54
  • · manual controlling due to on the supply hose · movable steering wheel
  • · the steering wheel is provided with one switch for · the bracing bladder, one switch
  • · or the cutter motor, one potentiometer for light · control, two buttons for the lifting
  • · nit and one analogue video out
  • · 3.5” TFT LCD monitor, storage of pictures/videos · (JPEG/MPEG) with SD card, USB, date and time     display
  • · completely assembled cutter on chassis with · pneumatic and electrical rotary leadthrough, · analogue and digital video out
  • · dimension of cutter: approx. L 495 x W 770 x H     877 mm/approx. 19.5” x 30” x 34.5”
  • · outside diameter of cutter: 42 mm/1.65”
  • · weight: approx. 35 kg
