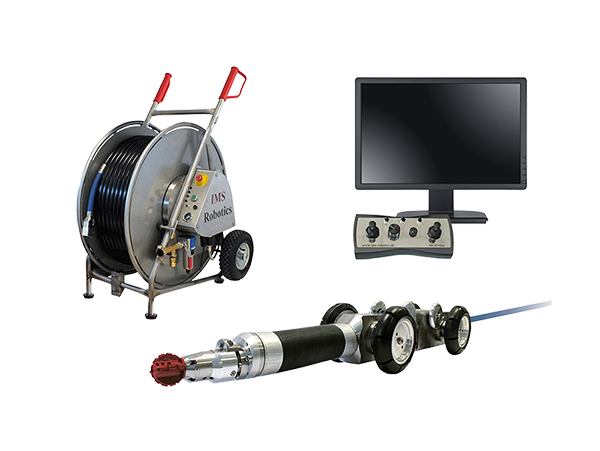

DRIVE



50 m / 100 m / 150 m


  very robust cutting robot forsmall and main sewers from DN150 up to DN 400/6“- 16“

  high operatingflexibility due to 3freedom degrees (driving movement, rotation and swivellingof the cutting arm)

  powerful  air-operated  cutting motor

  precise operation by cable remotecontrol with 2 joysticks for swivelling, turning and   driving

  toggle switches for pressure rail, watercleaning,turning speed of the cuttingarm, driving speed and cutter  motor

 potentiometerforlightcontrolandturningspeedofthecabledrum (onlyactivatedincombinationwiththeoption03011600„automatic reeling“)

  controlunitDRIVE with case optional available (omission of thestandardcontrol unitand ofthe17“ TFTmonitor)

  cable remote control and cable drum also usable together with item number 020 22 000 IMScutter DRIVE light

  perfect cutting control through integrated color camera with LED lighting, permanent camera

cleaning by air and optional switchable water  flushing

  long drivewaythrough powerful carriage with pressure   rail

  extremely short conversion time by changingnominal   diameters

  comfortable supply hosepackage of 100 m/328 ft or 150 m/492 ft on cable  drum

  optionally available with manualreeling, manual reeling with hand crank (optional) orautomaticreeling (optional)

  optional meter counting incl. data  loading

  vehicle mounting kit optional  available

  low weight of robotallows introduction of robot without a crane or  winch

  damage preventionthrough permanent internal pressure    monitoring

DRIVE
50 m / 100 m / 150 m
  • ◍ usable in pipes from DN 150 up to DN 400/6“ - 16“ (pipe inside diameter)
  • ◍ outside diameter device: 120 mm
  • ◍ air-powered cutter motor
  • ◍ electrically powered turning movement 400° / servo-pneumatic cutting arm swivelling approx. 200 mm/8“
  • ◍ self-propelled carriage with pneumatic pressure rail for improved stability and traction
  • ◍ different wheel sets for the nominal width range up to 400 mm/16“
  • ◍ color camera with LED and auxiliary lighting
  • ◍ permanent camera cleaning by air
  • ◍ splash-water-protected according to IP54
  • ◍ waterproofed device with 0,5 bar nitrogen filling
  • ◍ cable remote control with 2 joysticks for swivelling/turning and driving. Toggle switches for pressure rail,

  •  ◍ water cleaning, turning speed of cutting arm, driving speed, automatic driving and cutter motor. 1
  • ◍ analogue BNC video output. Potentiometer for light control and turning speed of the cable drum
  • ◍ 17“ TFT monitor
  • ◍ analogue video output on cable drum
  • ◍ preparation internal power supply for Tablet PC (Tablet PC option article number 016 54 060)
  • ◍ permanent monitoring of internal pressure with signalling
  • ◍ 100 m/328 ft or 150 m/492 ft supply hose
  • ◍ chassis for hose drum with pneumatic and electrical rotary leadthrough, manual reeling and manual brake
  • ◍ 1 accessory case with job site tools, valve extension, nitrogen filling adapter, thread extension, ball bearings and fins for air motor, replacement screws, 1 cutting tool carbide granulate, operation manual, ◍overview spare parts and extension parts
  • ◍ dimensions of robot (DN 250/10“): approx. L 1150 x W 190 x H 175 mm (45“ x 8“ x 7“),
  • ◍ weight approx. 21 kg
  • ◍ dimensions of cable drum: approx. L 790 x W 630 x H 1050 mm (31“ x 25“ x 41“),
  • ◍ weight approx. 88 kg (100 m)/104 kg (150 m)
030 15 400Conrol unit with case
016 54 060Tablet PC
030 10 600Water equipment
030 11 600Automatic reeling
030 09 600Meter counting
030 13 600Hand crank
036 09 000Extension up to DN 400 / 16"
(only for 50 m version)
030 07 400Extension 5 m / 16 ft for remote control
030 08 400Extension 50 m / 164 ft for remote control
006 34 010Granulated wheel 90
006 34 011Granulated wheel 140
006 34 015Corundum wheel 90
006 34 012Corundum wheel 140
018 68 000Vehicle mounting kit
034 30 000Quick Lock connection
