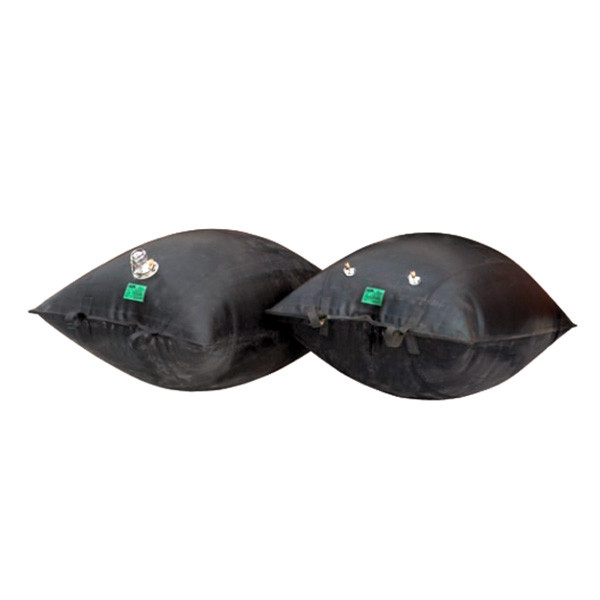

These pipe stoppersare mainly used in various sewers and storm sewers. Their advantage is in their ability to be inserted into the sewer through the standard gullies. The speci- al Kevlar reinforcement enables us to manufacture these stoppers in large diameters. The standard product line ranges from 1000 to 2200 millimetres.

Pillow Pipe Stoppers UP, PUP | Pneumatic Pipe Plug


Pillow Pipe Stoppers UP, PUP



Type

UP 100/140

UP 140/180

UP 180/220

PUP 100/140

PUP 140/180

PUP 180/220

Part - No.

1110

1111

1112

1225

1226

1227

Pipe diameter

mm

1000–1400

1400–1800

1800–2200

1000–1400

1400–1800

1800–2200

Operating pressure

bar

0,7

0,6

0,5

0,7

0,6

0,5

Test pressure

bar

1,05

0,8

0,65

1,05

0,8

0,65

Back pressure

bar

0,5

0,5

0,5

0,5

0,5

0,5

Width of pillow

mm

1450

2050

2650

1450

2050

2650

Length of pillow

mm

2300

3200

3900

2300

3200

3900

Weight

kg

40

73

115

43

77

120

Bypass

2“

2“

2“
