Water Stopper Tool for Pipe Repair

Water Stopper Tool for Pipe Repair
CategoriesPipe Stopper
AlbumView larger image
BrandIPS
ModelTest Pipe Stoppers PU
Terms of PaymentT/T, Western Union, MoneyGram
Download DOC
Update Time2018-12-13
Detail Information

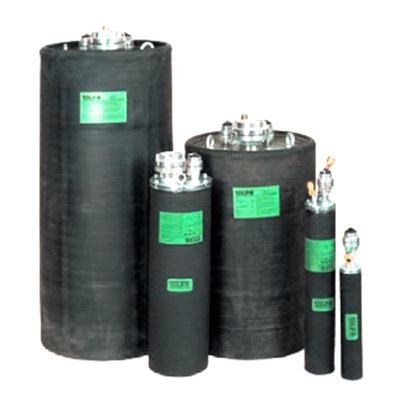

The pipe stoppers U, PU and PU–F are effective tools for the quick and reliable sealing or closing of drainige systems, pipelines, sewers and gullies. They are mainly used during repair and maintenance work, accidents and for the leak test with water or air according to

DIN EN 1610 of new or save sewers and pipe sections. Therefore they are highly valued in the water system organizations, construction industry, civil engineering and  rescue and fire brigades.

The pipe stoppers are made of quality rubber reinforced with fabric. They withstand weather, temperature from

-30 °C to 80 °C, use and waste water and they are middle resistant of chemicals.

The basic series consists of 26 standard types in sizes  to fit 50 to 1600 mm pipe diameters. All pipe stoppers

are tested by 1, 3 multiple of operating pressure and they withstand a back pressure 1 bar or 0,5 bar. There is a short operating instruction on every pipe stopper.

Water Stopper Tool for Pipe Repair


Test Pipe Stoppers PU


Type

PU 7/15

PU 10/20

PU 20/50

PU 50/80

PU 50/120

Part - No.

1201

1202

1203

1204

1205

Pipe diameter

mm

70–150

100–200

200–500

500–800

500–1200

Operating pressure

bar

1,5

1,5

1,5

1,5

1,5

Test pressure

bar

2,0

2,0

2,0

2,0

2,0

Back pressure

bar

0,5

0,5

0,5

0,5

0,5

Diameter

mm

67

96

190

450

450

Cylinder length

mm

330

510

580

680

970

Total length

mm

450

610

690

720

1000

Weight

kg

2,1

5,2

12,5

38

48

Bypass

1“

1“

1x1“

1x2“

2x1“

1x2,5“

2x1“

1x2,5“



Water Stopper Tool for Pipe Repair
