Pipe Testing and Flow Control
Pipe Testing and Flow Control
CategoriesPipe Stopper
AlbumView larger image
BrandIPS
ModelPipe Stoppers U
Download DOC
Update Time2020-06-07
Detail Information

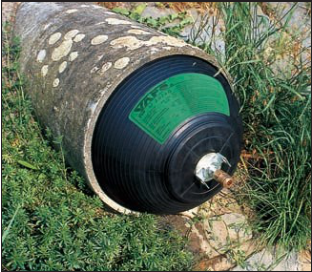

The rubber pipe stoppers U, PU and PU–F are effective tools for the quick and reliable sealing or closing of drainige systems, pipelines, sewers and gullies. They are mainly used during repair and maintenance work, accidents and for the leak test with water or air according to

DIN EN 1610 of new or save sewers and pipe sections. Therefore they are highly valued in the water system organizations, construction industry, civil engineering and  rescue and fire brigades.

The pipe stoppers are made of quality rubber reinforced with fabric. They withstand weather, temperature from

-30 °C to 80 °C, use and waste water and they are middle resistant of chemicals.

The basic series consists of 26 standard types in sizes  to fit 50 to 1600 mm pipe diameters. All pipe   stoppers

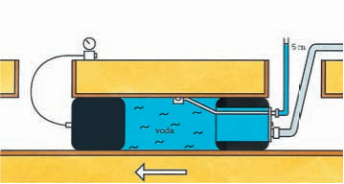

are tested by 1, 3 multiple of operating pressure and they withstand a back pressure 1 bar or 0,5 bar. There is a short operating instruction on every pipe   stopper.

Pipe Stoppers U

Type

U 4/7

U 5/10

U 7/15

U 10/20

U 15/30

U 20/40

U 20/50

U 30/60

U 50/100

U 60/120

U 100/160

Part - No.

1127

1101

1102

1103

1107

1104

1128

1105

1106

1108

1109

Pipe diameter

mm

40–70

50–100

70–150

100–200

150–300

200–400

200–500

300–600

500–1000

600–1200

1000–1600

Operating pressure

bar

2,5

2,5

2,5

2,5

2,5

2,5

2,5

2,5

2,5

1,5

1,0

Test pressure

bar

3,3

3,3

3,3

3,3

3,3

3,3

3,3

3,3

3,3

2,0

1,3

Back pressure

bar

1,0

1,0

1,0

1,0

1,0

1,0

1,0

1,0

1,0

0,5

0,5

Diameter

mm

38

47

67

96

135

190

190

290

450

560

850

Cylinder length

mm

160

340

330

510

550

580

740

730

1050

1290

2000

Total length

mm

210

390

380

570

610

640

800

790

1130

1360

2070

Weight

kg

0,3

0,5

0,6

1,5

2,5

3,9

4,5

7,6

22

35

99
